Nickel Blade

Nickel Blade

The Nickel binder provides longer blade life and lower wear rate.
Nickel-bond Blades are a perfect choice for soft material applications such as: PCB, Silicon and BGA.

· The hardest bonding agent with excellent wear resistance

· Excellent blade life

· Provide the thinnest blades available (as thin as 0.0008")

· High-precision cutting

PDF

Product Introduction

The Nickel binder provides longer blade life and lower wear rate.
Nickel-bond Blades are a perfect choice for soft material applications such as: PCB, Silicon and BGA.



Blade thickness: 50 – 300µm
Diamond grit size: 3 – 50µm
Serrations:
Serrations available for Nickel blades as well as various edge
shapes

Blade Feature

  • The hardest bonding agent with excellent wear resistance
  • Excellent blade life
  • Can provide the thinnest blade (minimum thickness of 0.0008 inches)
  • High-precision cutting
  • Excellent rigidity, which can improve exposure accuracy
  • Reduces overall cost (Co0)

Blade Application

Diamond grit size (µm) Product Material Matrix
30 up to 50 Ceramic / Capacitors Green Ceramic BLB/BL0
10 up to 30 PCB / LED Package FR4 / Epoxy & Cu BLZ,BLV,BLT
6–8 up to 10 Medical Ultrasound Sensors PZT A0T
2–4 up to 4–8 IC’s Silicon Hub blades

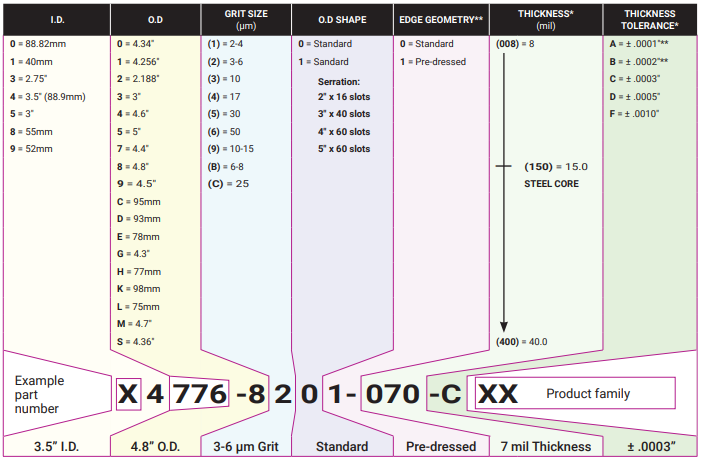

Nickel - Bond Blades Part Number Description
